Remotec Z-URC550 V1 User Manual

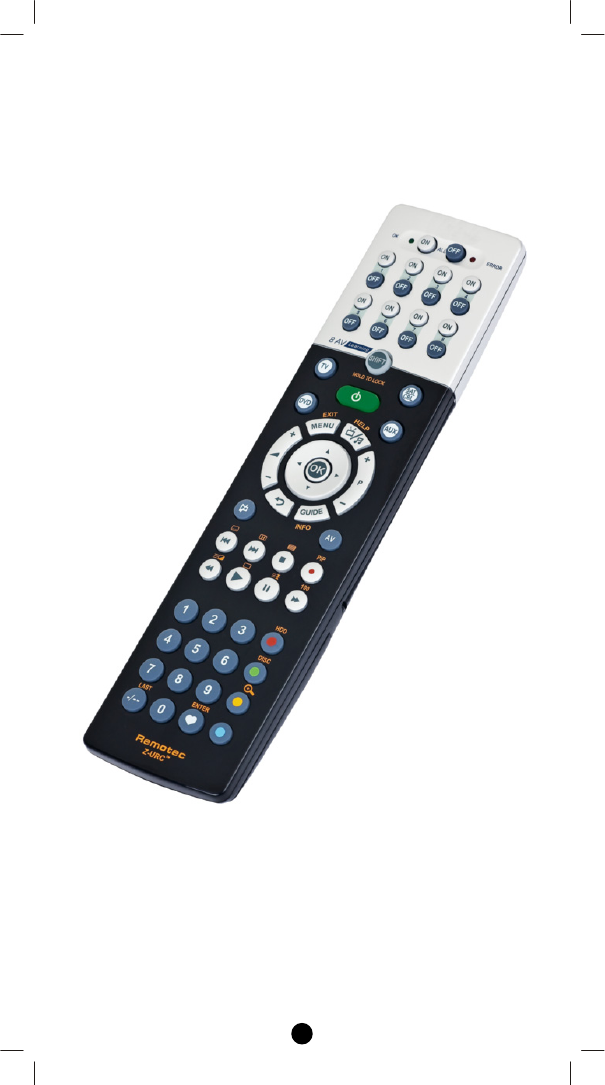

1 Z-URCTM 550EU (Z-Wave Enabled Universal Remote Control)

10 Note2: XpressZetupTM cannot support “Multi-Channel Device”, please refer to [Adding Device to the Network] and [Adding Device/End-point to a grou

11 Note2: This process will only remove the group devices from its assigned group but will not exclude it from the network. Note 3: The above step

12 By Advance Setup Process (For advanced users to get the full flexibility offered by the Z-URCTM 550EU) The Z-URCTM 550EU remote is able to be se

13 1-8) • “LED_B＂ flashes slowly 4 Press the program/EP button on the target device • “OK＂ LED flashes once and stays on • “LED_B＂ keep bl

14 scene successfully Note1: This process will only remove the target device/EP from its assigned scene but will not exclude it from the network.

15 Additional Device Setups Add/Delete Devices Adding Device to the Network Step Setup Key LED Indication Status 1 Press in Advance Setup •

16 Add/Remove/Delete Device/End-point to/from a group Adding Device/End-point to a group Step Setup Key LED Indication Status 1 Press in Advan

17 Deleting a group Step Setup Key LED Indication Status 1 Press in Advance Setup • The “OK＂ light turns on 2 Select a group number from 1 to

18 4 Press the program/EP button on the secondary device (e.g. light switch)• “OK＂ LED flashes once and stays on • “LED_B＂ flashes once and keep

19 Deleting an Association Group Step Setup Key LED Indication Status 1 Press in Advance Setup • The “OK＂ light turns on 2 Press • “OK＂ LE

2 Table of Contents Introduction... 4 Glossary ...

20 Add/Delete All-On/All- Off functions If desired, specific devices can be setup to ignore the All-On and All-Off commands. The four possible resp

21 Adding Devices to All Control Step Setup Key LED Indication Status 1 Press in Advance Setup • The “OK＂ light turns on 2 Press and hold the

22 Change Device Configuration This function is used to modify the parameter of the Z-Wave device via the configuration command class. Look up the

23 Advanced Z-Wave Network Setups Copying All Network and Device Information to a Secondary Controller You can add a secondary controller to your

24 Copying Network Information to a Secondary Controller You can add a secondary controller to your network and copy all of your primary controller

25 Transferring All Network and Device Information to a New Primary Controller (Primary Shift) You can transfer all of your controller information

26 Transferring Only Network Information to a New Primary Controller (Primary Shift) You can just transfer network information to another remote so

27 Replicating All Network and Device Information from a Primary Controller to Your Z-URCTM 550EU (“Learning Mode＂) Your Z-URCTM 550EU can: • C

28 Listening Mode There are multiple usages by entering this mode: • Version command class: To get application software version, the Z-Wave protoc

29 Resetting Your Network You can reset your Z-URCTM 550EU to clear all Z-Wave network and device information by the following steps: Step Setup

3 Learning IR Commands... 35 Operating the Z-URCTM 550EU for AV Equipment .. 36 ADVANCED OPERATION FOR AV EQUIPMEN

30 AUDIO/VIDEO SETUP AND OPERATION In addition to Z-Wave device and scene control, your Z-URCTM 550EU is also a universal remote which enables you

31 Description of Audio/Video Control Keys The Z-URCTM 550EU operates up to 8 AV equipments which are accessed by using the SHIFT key and TV or DVD

32 Return, Cancel or Exit Selects the Electronic Program Guide while in SAT/CBL mode also INFO when in shift mode Mute the audio Scrolls through

33 Green button when in SAT/CBL and TV modes also disc menu for DVD when in shift mode Yellow button when in SAT/CBL and TV modes also zoom when i

34 Suggestions: • If you cannot find a correct Device Code for your equipment, refer to AV Equipment Selection by Searching through the Library. •

35 L IMPORTANT − If the power on/off function of your device is not infra-red controlled, you need to follow steps 2 to 6 above and start searchin

36 5 Press a desired key once and release on the Z-URCTM 550EU which you want to learn the command. The green indicator will flash once then stay l

37 Punch Through Punch Through Channel Punch through channel allows you to operate channel up and down without having to switch the device modes re

38 Macro Power Macro Power allows you to turn two of your A/V equipment on/off simultaneously. To activate the macro power setting: 1. Press desir

39 Restore Factory Settings 1 Press and hold "CH+" and "VOL-" keys on the remote simultaneously for 3 seconds until you the ind

4 Z-URCTM 550EU (Z-Wave Enabled Universal Remote Control) Operating Instructions Introduction The Z-URCTM 550EU Z-Wave AV Controller is a unive

40 also being a standard universal remote that can control up to 8 AV equipments. Your Z-URCTM truly turns your living room into your whole houses

41 Q Why do I need a different module for outdoor lighting? A The outdoor module is designed to withstand various weather conditions including hea

42 AV Control Frequently Asked Questions Q My Z-URCTM does not work at all! A Check your A/V device, if the device's main switch is turned of

43 Z-Wave device type Basic Device Class: BASIC_TYPE_CONTROLLER Generic Device Class: GENERIC_TYPE_GENERIC_CONTROLLER Specific Device Class: SPECIFI

44 CHECKING THE ACCESSORIES After opening the cover of the packing box, check that the following accessories are included. • Z-URCTM 550EU: Z-Wav

5 Glossary Device or Node Z-Wave enabled device that can be controlled by the Z-URCTM. Inclusion Add a Z-Wave device to the network. Exclusion De

6 Z-URCTM 550EU Operations Welcome to the world of home automation, your Z-URCTM 550EU will be able to control all the Z-Wave products around your

7 Configurations Please open the configuration compartment then you can see the Z-URCTM 550EU setup keys (Figure 2). Figure 2 Setup Keys of th

8 Description of Function Keys Keys Functions The All-On and All-Off keys are used for turns on or off all Z-Wave devices in the device database.

9 This Remove key is used in the Advance Setup to: • Remove a device from a group; • Remove a device from an association group; • Remove a devi
